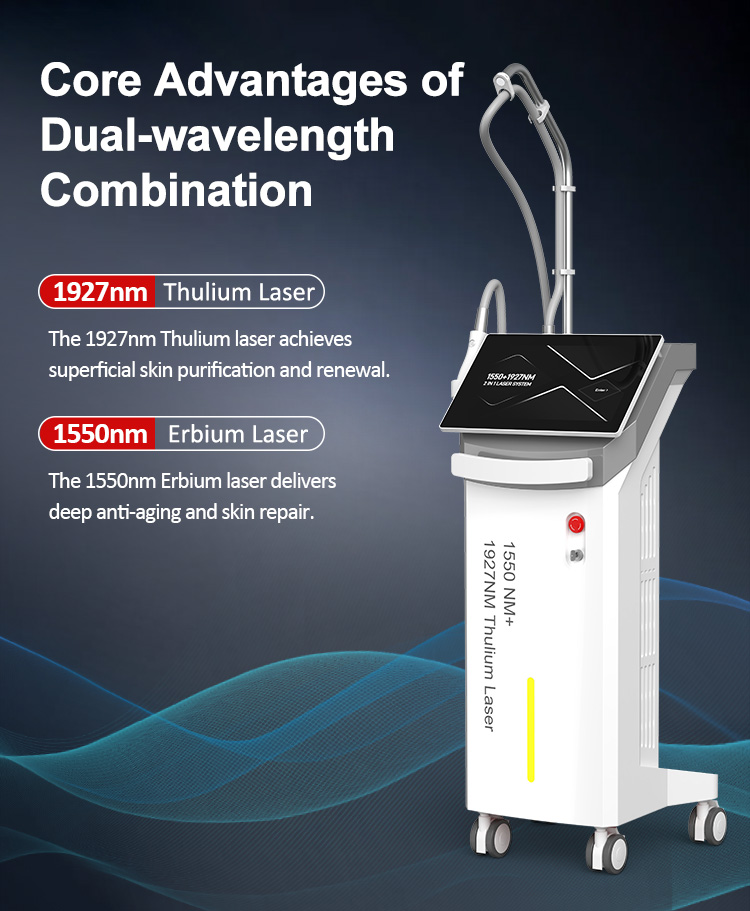

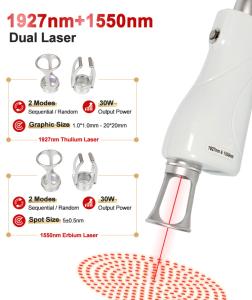

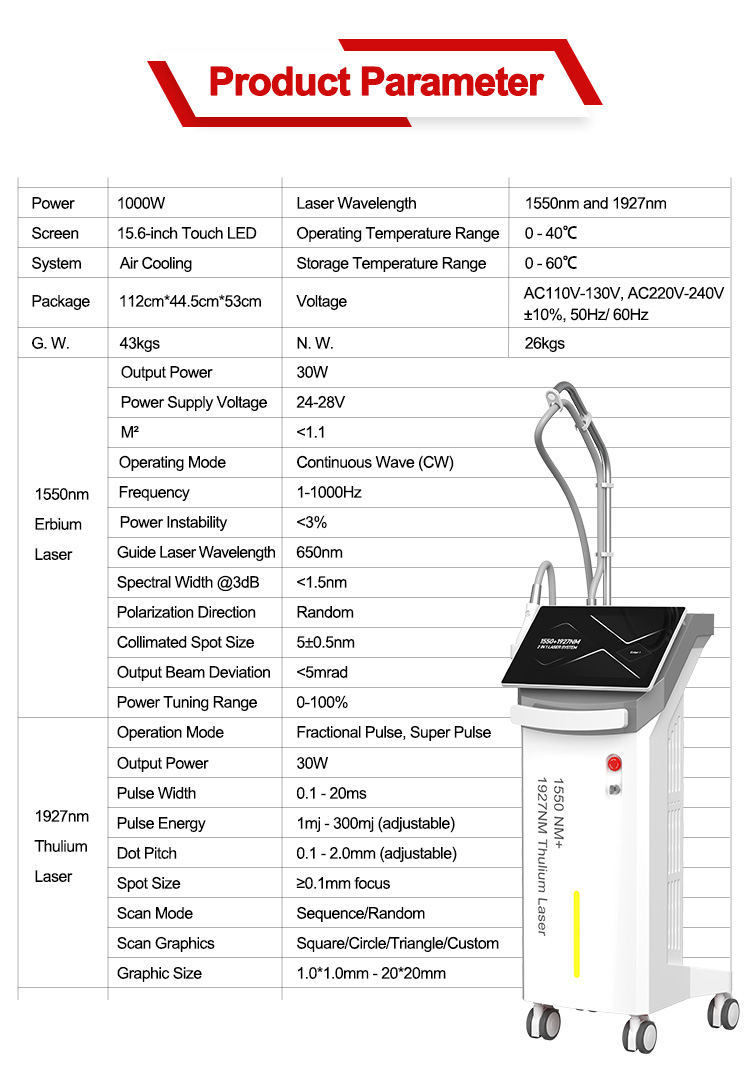

Laser Wavelength

1550nm and 1927nm

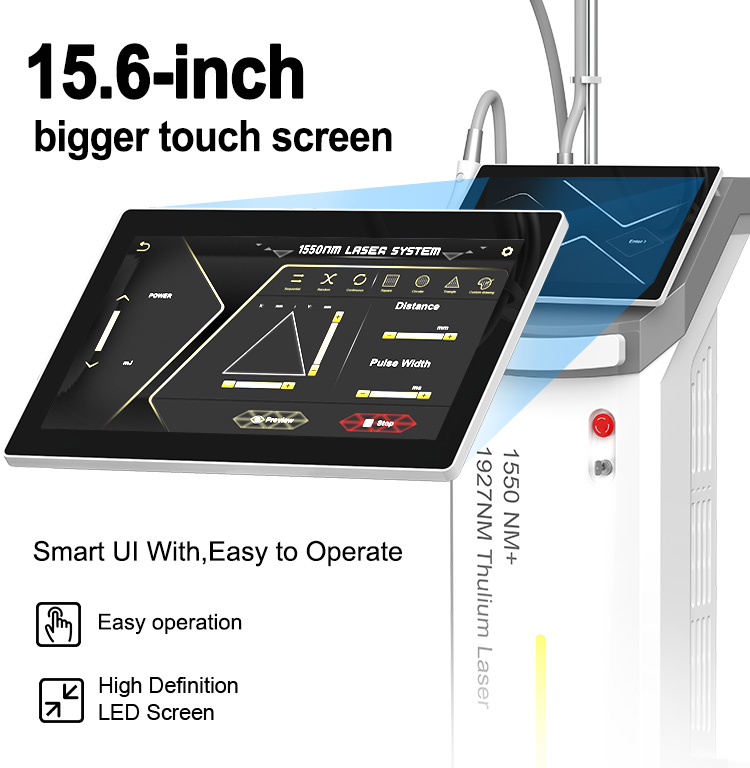

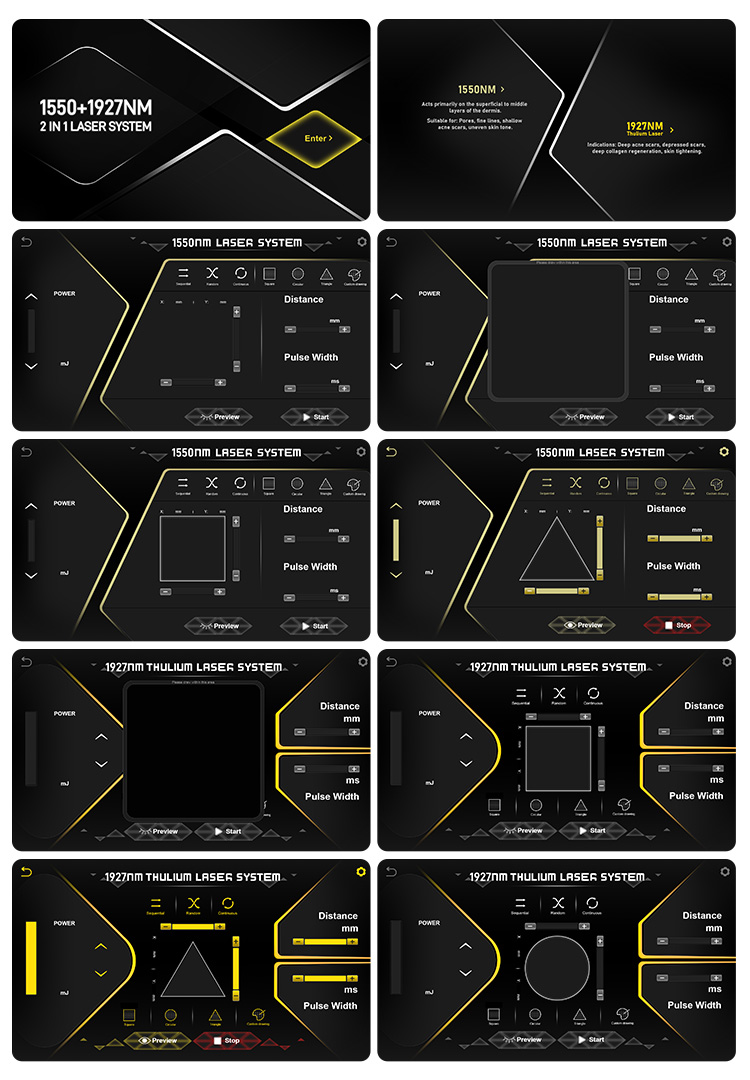

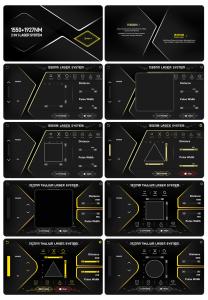

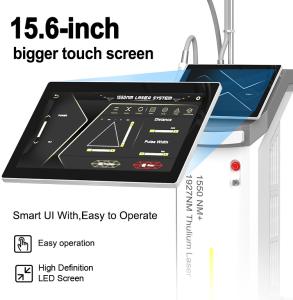

Screen

15.6-inch Touch LED

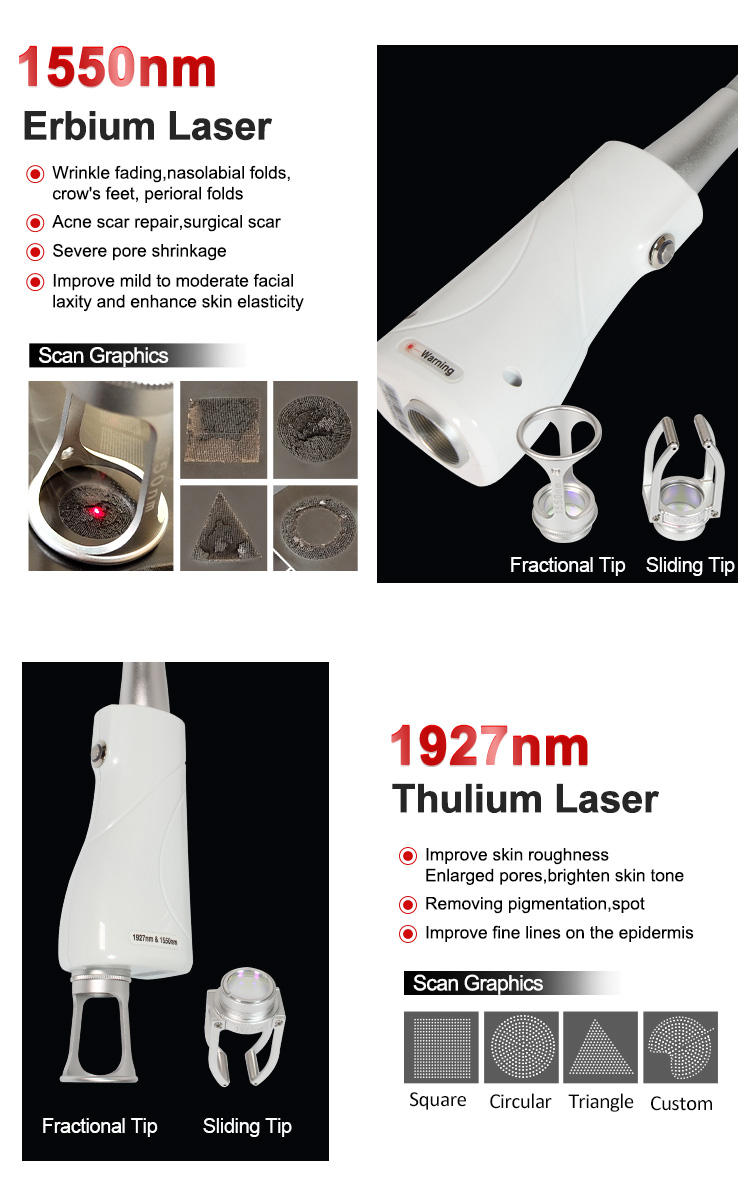

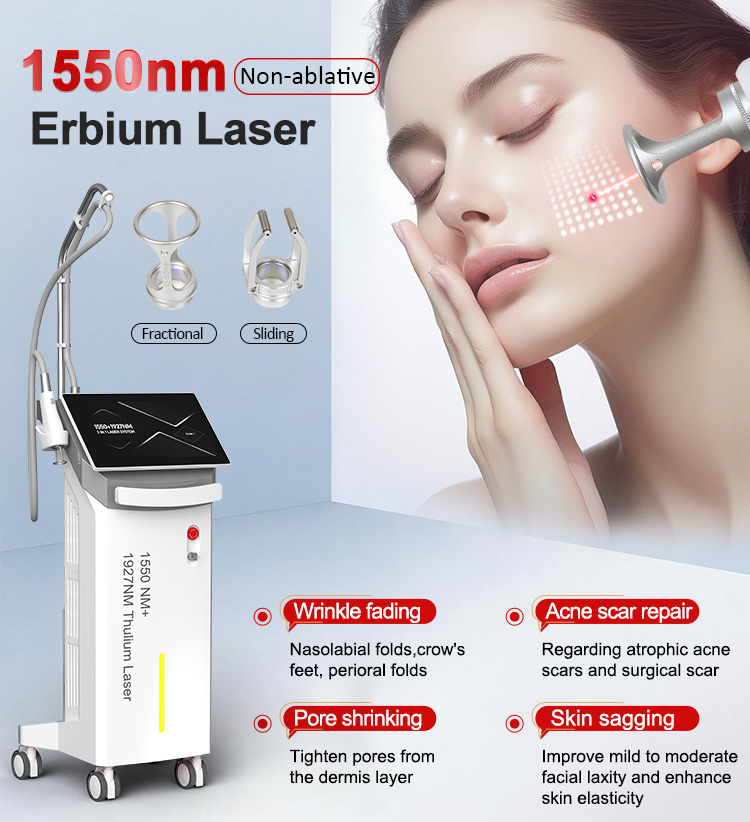

1550nm

Erbium Laser

Output Power

30W

Power Supply Voltage

24-28V

M²

<1.1

Operating Mode

Continuous Wave (CW)

Tunable Frequency Range

1-1000Hz

Power Instability

<3%

Guide Laser Wavelength

650nm

Spectral Width @3dB

<1.5nm

Polarization Direction

Random

Collimated Spot Size

5±0.5nm

Output Beam Deviation

<5mrad

Power Tuning Range

0-100%

1927nm

Thulium Laser

Operation Mode

Fractional Pulse, Super Pulse

Output Power

30W

Pulse Width

0.1ms - 20ms

Pulse Energy

1mj - 300mj (adjustable)

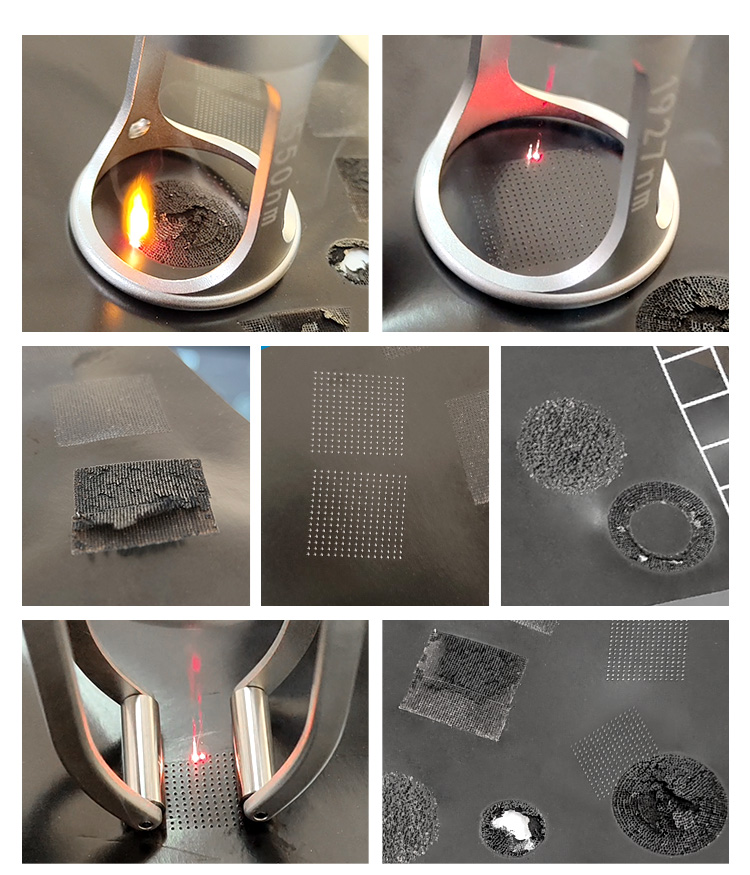

Dot Pitch

0.1mm - 2.0mm (adjustable)

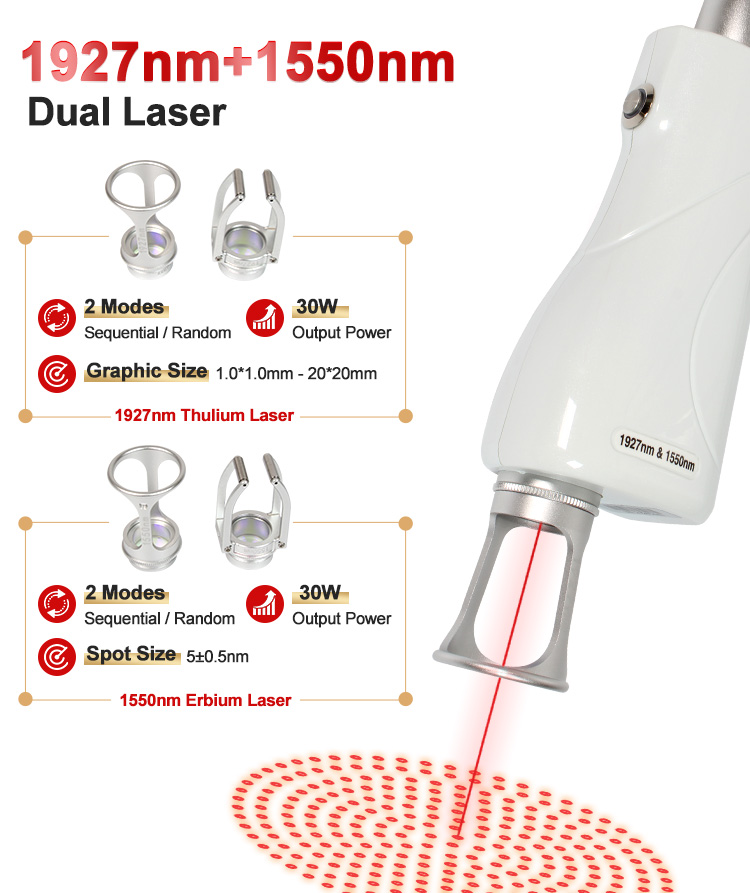

Spot Size

≥0.1mm focus

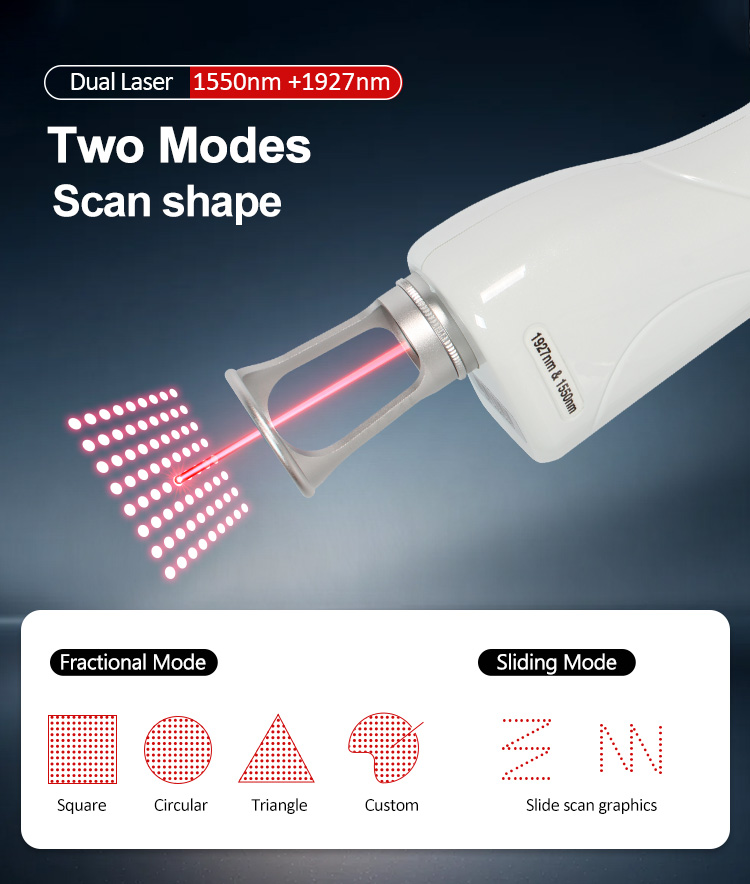

Scan Mode

Order/Random

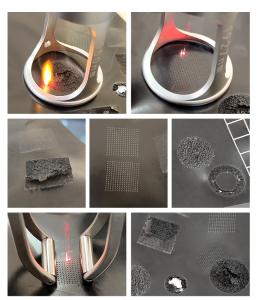

Scan Graphics

Square/Circle/Triangle/ Custom

Graphic Size

1.0mm*1.0mm - 20mm*20mm

Cooling System

Air Cooling

Operating Temperature

Range

0 - 40℃

Storage Temperature

Range

0 - 60℃

N. W./ G. W.

26kgs/43kgs

Package Size

112cm×44.5cm×53cm

Voltage

AC110V-130V, AC220V-240V±10%, 50Hz/ 60Hz
